Wall-mount power adapter manufacturer

A US company you buy from
One accountable contact
Own factories · China + Vietnam
Origin documented per unit

Build to your spec

HTS 8504.40.85

OutputAny voltage to your drawing — 5 to 65 W in a plug-in body, higher in a desktop case · 5 / 9 / 12 / 24 V common

PlugUS NEMA 1-15 folding blades; EU / UK / AU and interchangeable clips on request

ConnectorDC barrel or to your drawing

EfficiencyDoE Level VI, computed for your wattage — 85.0% at 18 W, 86.2% at 24 W

No-loadLevel VI limit — < 0.1 W to 49 W

Ripple & noiseTo your spec — 200 mV typical on a 12 V rail, 20 MHz BW-limited

ProtectionOVP · OCP · short-circuit — trip points to your spec, e.g. OVP below 18 V on a 12 V rail

Production testHi-pot 3.0 kV AC, 3 s, 100% of units · insulation > 50 MΩ at 500 V DC

ImmunityIEC 61000-4-2 to 4-11 at your levels — e.g. ESD ±8 kV air / ±4 kV contact

Output cableGauge, length and jacket to your spec — 2468 20 AWG × 1500–1800 mm typical

CertificationUL / cUL 62368-1 · FCC · CE / UKCA standard · DoE Level VI · PSE / KC / CCC / BIS and other regional marks on request

CustomVoltage, cable length, connector, housing color, logo

OriginVietnam or China — your election, documented per unit

The figures above are typical of builds we have shipped, not a limit. Output voltage and wattage, connector, plug standard, protection trip points, cable, housing and agency marks are all set per order — send a target spec and we will quote against it.

Discuss your spec

How we build them

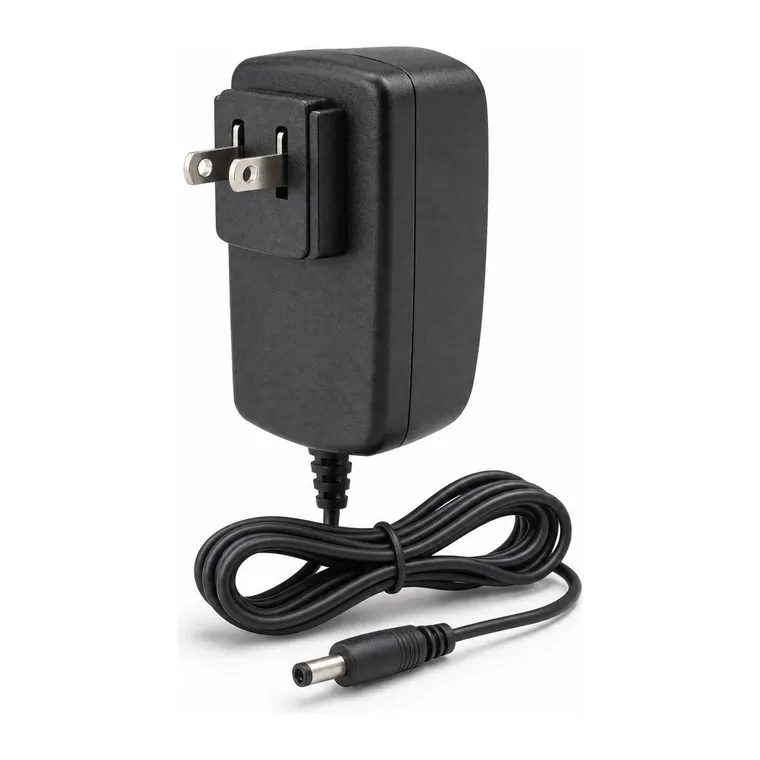

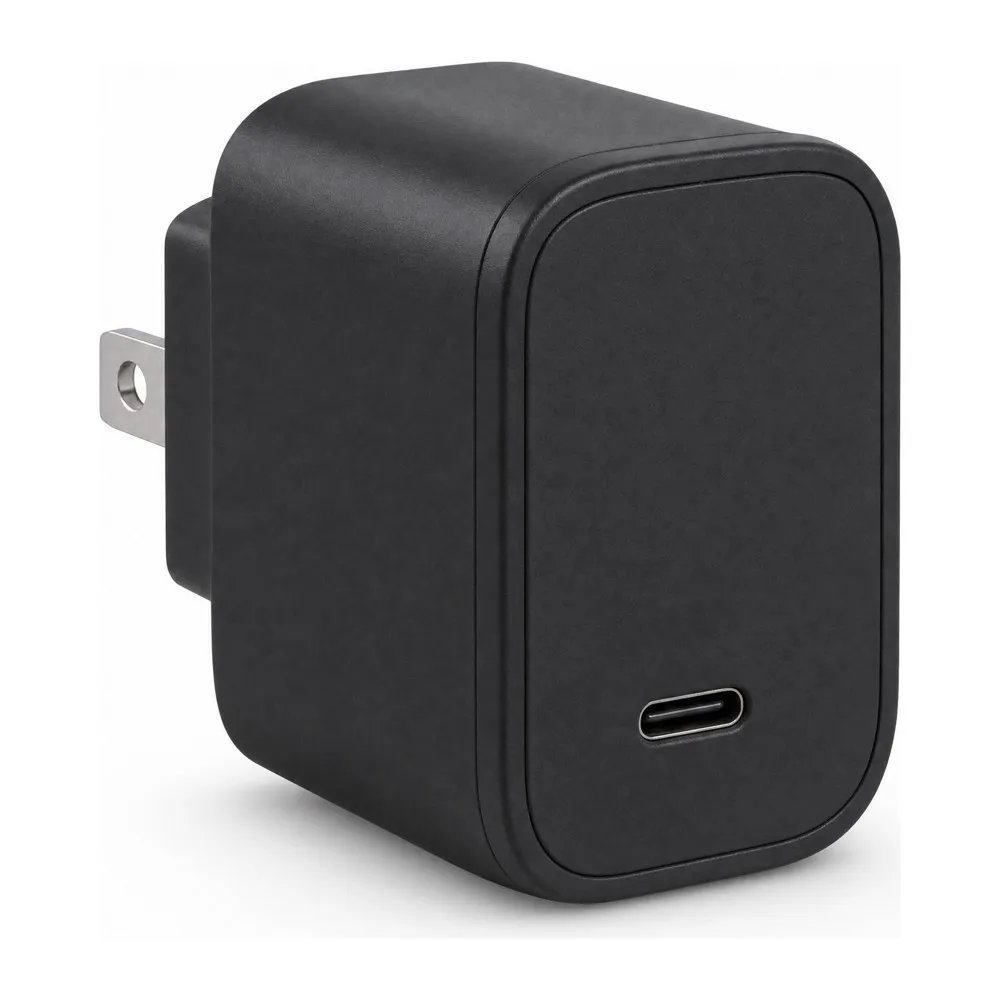

We build wall-mount adapters on our own lines from 5 to 65 W, with US folding blades or interchangeable AC clips and a DC lead terminated to your drawing. The efficiency we print is the DoE Level VI four-point average for that wattage — 85.0% at 18 W, 86.2% at 24 W — and every unit is hi-pot tested at 3.0 kV AC before it leaves the line. Standard SKUs, or built to your voltage, cable length, connector, and housing colour.

How to read a power adapter spec sheet →

How we test them — IQC to OQC →

The marks every build carries.

Product certifications on the label, the packaging, and the documentation your procurement team audits against — verifiable by file number on request.

cULus LISTED

cRUus REC.

cETLus

FCC PART 15

RoHS

REACH

Manufacturing operates under ISO 9001:2015 · ISO 14001:2015 ·ISO/IEC 27001:2022 · TL 9000-H · QC 080000 HSPM · ESD S20.20 ·Amfori BSCI

See how we source

Wall-mount power adapters — common questions

Can you build a custom wall-mount power adapter?

Yes. Plug-in wall adapters from 5 to 65 W at 5, 9, 12, or 24 V, built to your DC output connector, cable length, housing color, and logo.

Do you offer interchangeable AC plugs for other regions?

Yes. US NEMA 1-15 folding blades are standard, with interchangeable EU, UK, and AU clips on request for multi-region programs, so one supply ships worldwide.

What is the maximum wattage for a plug-in wall adapter?

Up to about 65 W. Above that the unit gets too heavy to hang safely from the outlet, so we move you to an enclosed desktop adapter with a detachable cord.

What safety marks do wall adapters carry?

UL 62368-1, DoE Level VI efficiency, and FCC Part 15 B, verifiable by file number, with regional overlays on request.

Can I choose the country of origin?

Yes. The same adapter builds in Vietnam or China on one drawing set — you elect the origin, documented per unit.

Related products

Desktop power adaptersEnclosed, any voltage, to 250 W USB-C power adaptersUSB PD 3.0 / 3.1 fixed-output GaN chargers30–140 W, 1–4 ports, PD 3.1 EPR USB-C & PD wall chargersQuick / PD single & multi-port

Request a quote

Send the spec or drawing, target volume, certification, and destination — five lines get you a real quote for wall-mount power adapters.
