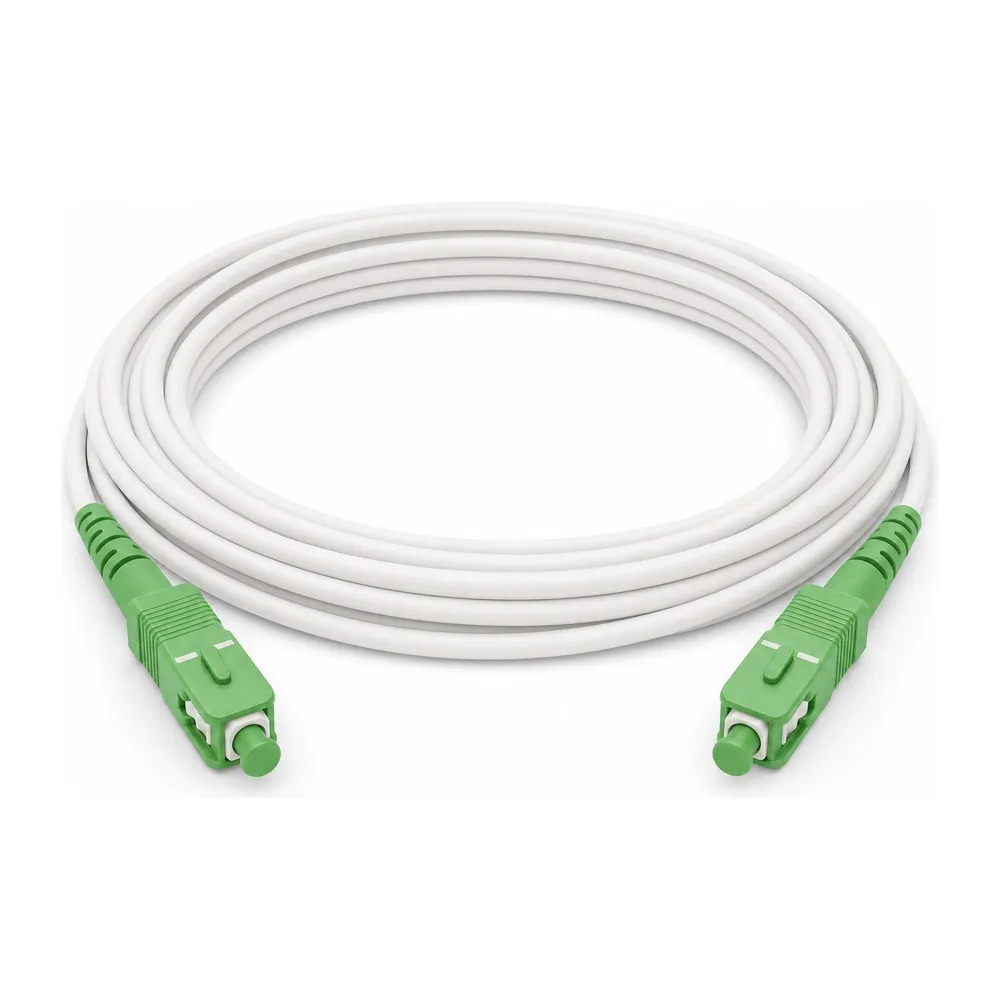

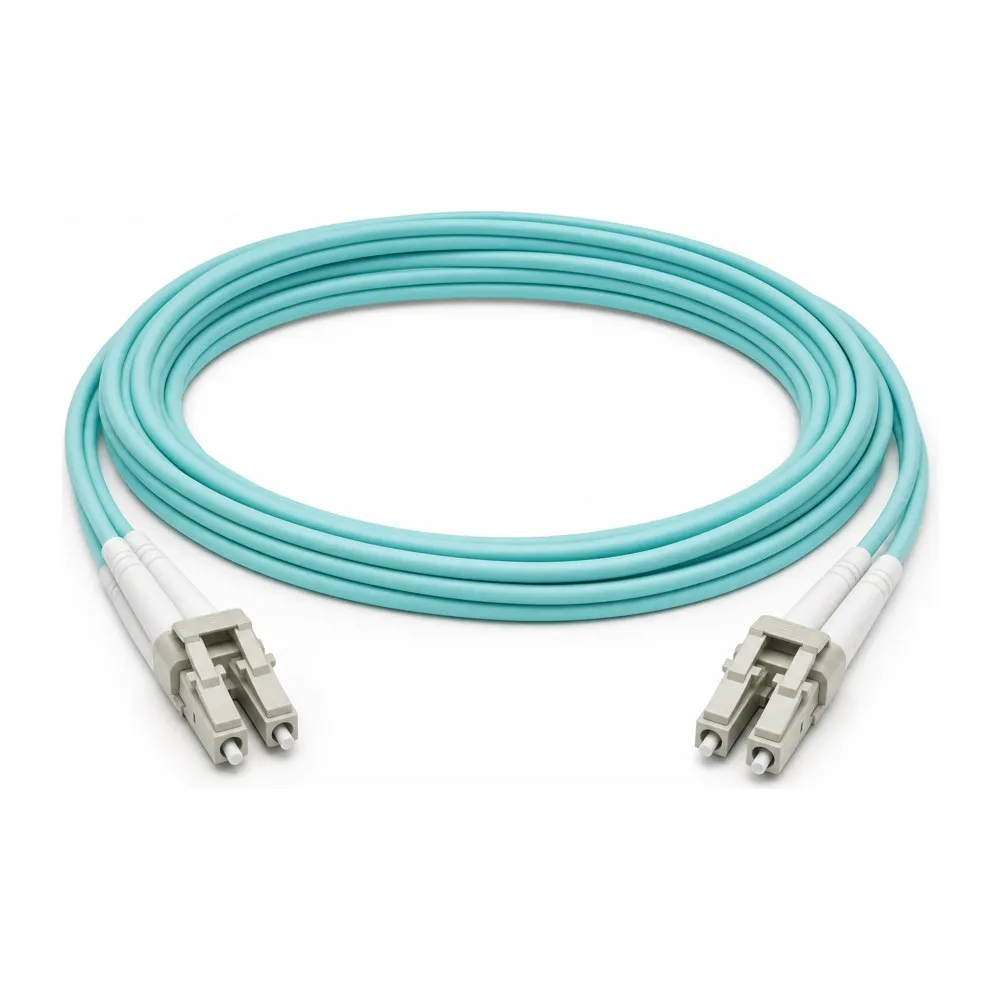

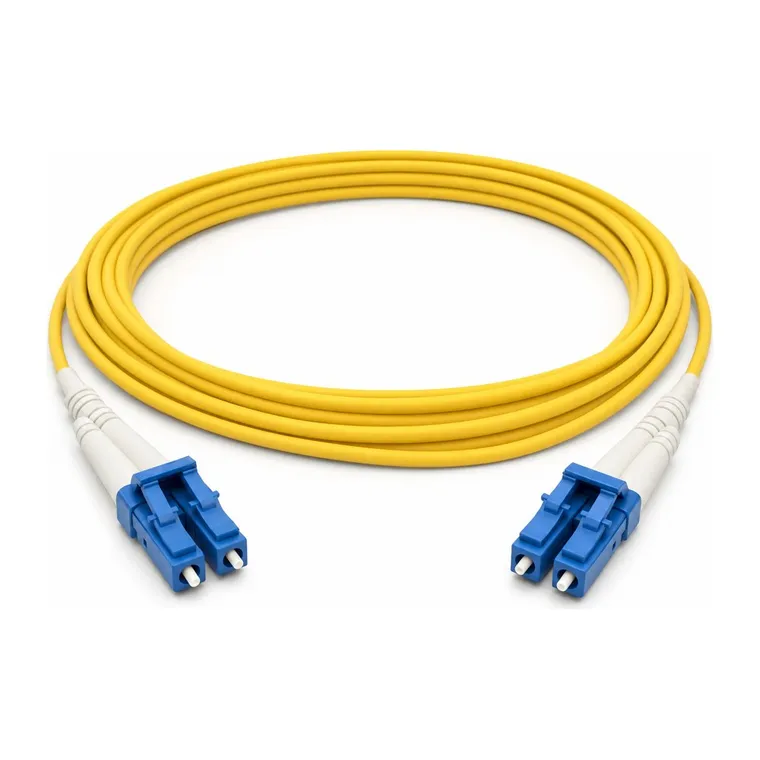

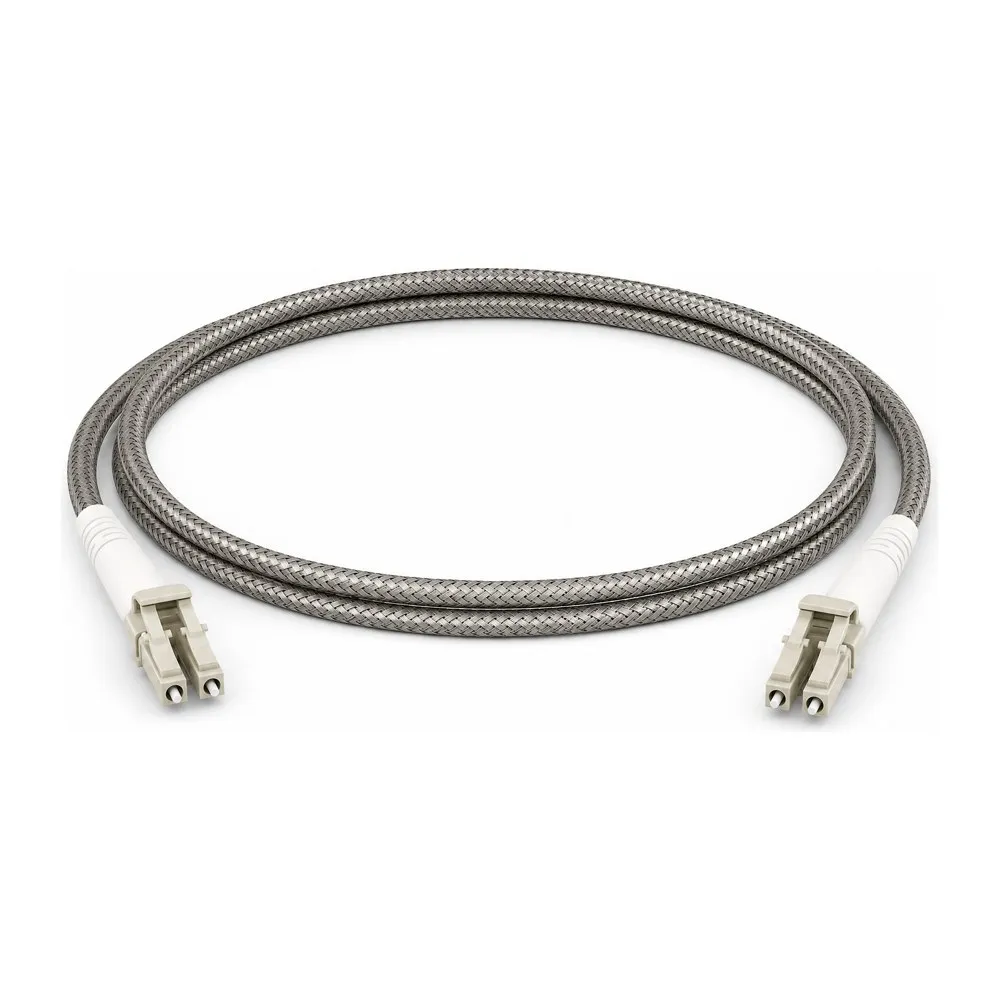

A data-center fiber and patch cable manufacturer — OS2 single-mode and OM3/OM4/OM5 multi-mode LC, SC, and ST patch cords, plus MPO/MTP breakouts and pre-terminated trunks built to your drawing. Terminated, tested for insertion and return loss, and origin-documented per unit.
Our fiber lines terminate and polish LC, SC, and ST connectors and test every assembly for insertion and return loss — OS2 single-mode and OM3/OM4/OM5 multi-mode, simplex or duplex, in the jacket and boot your run needs. MPO/MTP breakouts and pre-terminated trunks (Base-8 and Base-12 polarity) are built to your drawing, with your part number and packaging for private-label programs.
| Type | Core | Reach at 10G | Typical use | Jacket |
|---|---|---|---|---|
| OS2 single-mode | 9 / 125 µm | up to 10 km+ | Carrier, FTTx, campus | Yellow |
| OM3 multi-mode | 50 / 125 µm | up to 300 m | Data-center, short backbone | Aqua |
| OM4 multi-mode | 50 / 125 µm | up to 400 m | Data-center, high-density | Aqua / violet |
| OM5 multi-mode | 50 / 125 µm | up to 400 m | Data-center, SWDM / 400G | Lime |
Product certifications on the label, the packaging, and the documentation your procurement team audits against — verifiable by file number on request.
cULus LISTED
cRUus REC.
cETLus
CE
FCC PART 15
RoHS
REACHManufacturing operates under ISO 9001:2015 · ISO 14001:2015 ·ISO/IEC 27001:2022 · TL 9000-H · QC 080000 HSPM · ESD S20.20 ·Amfori BSCI
Both — OS2 single-mode for long-haul and OM3/OM4 multi-mode for data-center and in-building runs, simplex or duplex.
LC, SC, and ST in UPC or APC polish. APC (angled) is used where low back-reflection matters, such as PON and RF-over-glass.
Yes — end-face geometry and insertion and return loss to Telcordia GR-326, with test data per assembly and RoHS.
Both are laser-optimized multi-mode; OM4 carries the same data rate farther — a longer reach at 10G, 40G, and 100G. Tell us the distance and rate and we spec the grade.
Yes — custom length, connector, polish, and jacket, with origin documented per unit.
Send the spec or drawing, target volume, certification, and destination — five lines get you a real quote for fiber optic cables.
