Overmolded cable assemblies: when to spec them, and the tooling cost

An overmolded cable assembly solves one problem better than anything else: the connector-to-cable joint is where a cable fails first, and molding a body directly over that joint protects it. Done right, an overmold is a sealed, strain-relieved, one-piece assembly that outlives a bolt-on backshell. Done reflexively — specced on a low-volume build that never needed the tooling — it is money spent on a mold you did not have to buy. This guide is the decision: what overmolding buys you, when a backshell is smarter, the two molding processes, and the tooling math that actually settles it.

What overmolding is, and what it replaces

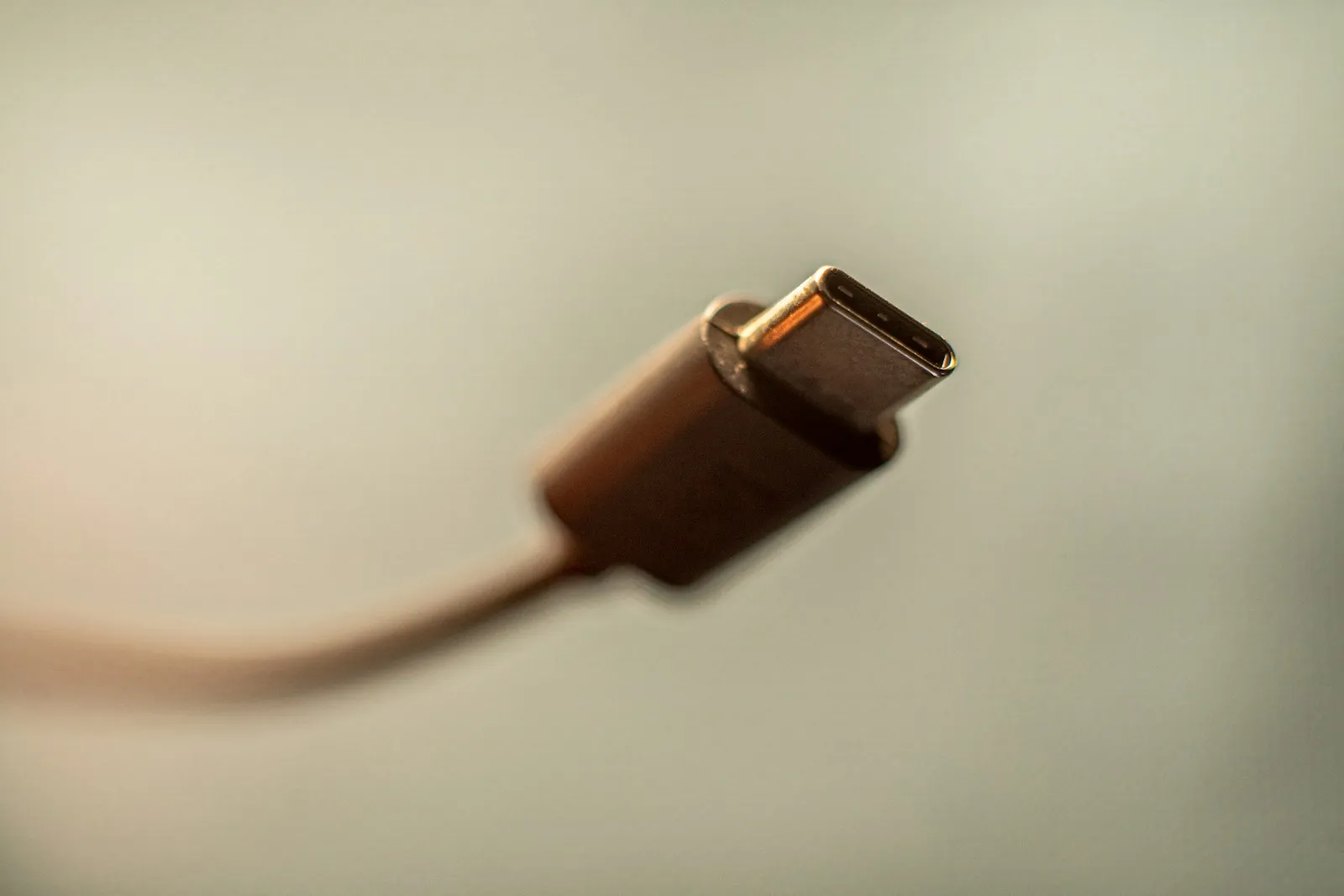

BLUF: overmolding injection-molds plastic directly over the termination, replacing a separate backshell, boot, or heat-shrink with a single molded body. That body does three jobs at once — it grips the cable jacket, relieves bending stress at the connector exit, and can seal the assembly against dust and water. The alternative, a mechanical backshell or boot, is assembled from parts: no tooling, field-repairable, but never as sealed or as strain-relieved.

When to spec an overmold — and when not to

Spec an overmold when the assembly has to survive one of these: repeated flexing at the connector, an IP67 or IP68 environment, a pull-out risk, or a tamper concern — and when the volume justifies a tool. Overmolding is also how you get a clean, brandable, one-piece look for a product cable.

Do not reach for it by default. A backshell is the smarter call when the run is small (the tooling never amortizes), when the field has to open and rework the assembly, or when the connector already ships with an adequate molded boot. The failure mode here is not technical — it is paying NRE for a mold on a build that a $2 boot would have carried.

Injection versus low-pressure molding

BLUF: there are two overmolding processes, and they are not interchangeable. The one you pick follows from what is under the mold and how many you are making.

The tell is what sits under the mold: a rugged power or data cable that needs abrasion resistance and volume goes injection; a sensor or a small PCB that high injection pressure would crush goes low-pressure. A manufacturer that runs both can put the process to the part instead of forcing the part to the process.

Material and the specs that matter

The overmold material sets how the assembly behaves. PVC is the low-cost default and flexes well; TPU is tough, abrasion- and oil-resistant, and holds up outdoors; TPE balances flexibility and processing; nylon (PA) is rigid and high-temperature. The material has to match the environment, not just the budget.

Whatever the material, a real overmold drawing calls more than “overmolded.” It specifies the bend radius and strain-relief profile at the exit, the IP rating if the assembly is sealed, the pull force the termination must survive, and the material and durometer. Vague drawings are how two quotes come back describing two different parts.

The tooling reality

Overmolding is cheap per part and expensive to start, because it needs a mold — a one-time NRE charge and typically a few weeks of lead time. That single fact drives the whole decision:

• At volume, the tooling amortizes to pennies a part and the overmold is the obvious, superior build.
• At low volume, the tooling dominates the unit cost, and a mechanical backshell that needs no tool usually wins.

The honest version of this conversation happens before commitment: a shop that offers overmolding services should quote the tooling NRE, the lead time, and the per-part cost at your volume separately, so you can see the break-even rather than discover it. Ask for the tool cost up front — it is the number that decides the method.

What to put on the drawing

Lock these before it goes out, and the quote comes back as one part instead of three interpretations:

• Overmold material and durometer (PVC, TPU, TPE, nylon).
• Process if it matters — or the constraint (delicate PCB → low-pressure).
• Bend radius / strain-relief profile at the connector exit.
• IP rating if sealed, and the test that proves it.
• Pull force the termination must hold.
• Volume — so the tooling can be amortized honestly in the quote.
• Country of origin documented per unit — it sets your Section 301 exposure and has to survive entry.

Overmolding is one method inside the larger cable assembly decision, and the same rule governs it: spec it to a standard — IPC/WHMA-A-620 — and demand the test. If you want custom overmolded cable assemblies molded, tooled, and tested by the US company that builds them, with the tool cost quoted before you commit, send us the drawing and the volume — we will quote it built and tested.
